51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

Brand Name : Elite Battery

Model Number : 48V 100Ah

Certification : CE, UL, MSDS, UN38.3, MSDS

Place of Origin : Guangdong, China

MOQ : 1 PCS

Price : $199.99-$1199.99/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10000 PCS/Month

Delivery Time : 30 Days

Packaging Details : Carton box with pallet

Capacity : 48V 100Ah

Nominal Voltage Voltage : 51.2V

Rated Capacity : 100Ah

Energy : 5376Wh

Application : ESS, Solar System

Cycle Span : 3000-5000 Cycles

Compact Desiged : with Built-in BMS

Self-diacharge Rate : <3%

Communication : CAN, RS232, RS485

OEM/ODM : Available

Contact Now

51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

48V 51.2V 5KWh Powerwall Battery Rechargeable Li-ion Battery For Home Solar System

48V 100Ah 5KWH/48V200Ah 10KWH Powerwall Battery

Support parallels connection to max 200KWh.

​5 years warranty and 10 years lifespan design.

OEM&ODM service and accept print your logo.

Easily installation and operation ,just plug and play.

More than 6000 times deep cycle as up to 90% DOD.

With intelligent BMS system to optimize the performance.

Compact design, LCD screen, convenient setting buttons and IP65.

Optional for LCD display and communication (CAN/RS485/RS232).

Max discharge current up to 150-200A, compatible with solar system.

51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

Powerwall Battery Specification

Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Internal Resistance ≤10mΩ
Cycle Life >3000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Charge Cut-off Voltage 58.4±0.2V
Charge Mode 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV)
Recommend Charge Current 20A
Max. Charge Current 100A
Max. Continuous Discharge Current 100A
Max. Pulse Current 200A(10S)
Discharge Cut-off Voltage 40V
Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP67
Cell&Method 16S
Package Metal Case
Dimensions(in./mm.) 780*634*114mm
Weight(lbs./kg.) 68kg

Home Powerwall Images

51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

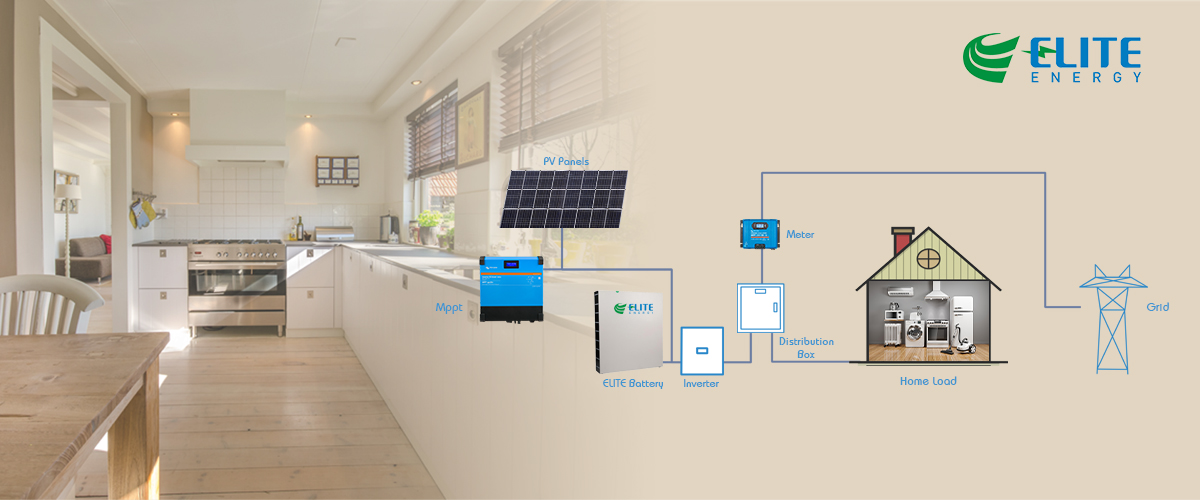

Home Solar Working System

Connect with solar panel and inverter, conversion of direct current to alternating current to supply the energy power to the home appliances.

51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

Compatible Inverter Brand

Elite powerwall are support communication with most inverter brands such as Deye, Growatt, Kstar, Victron, Goodwe.

51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

Packaging & Shipping

Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

Shipping: By air, by sea, by express, railway transportation and so on.

51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System
